Fig. 12 | Cellular & Molecular Biology Letters

Fig. 12

From: Oncogenic circ-SLC16A1 promotes progression of non-small cell lung cancer via regulation of the miR-1287-5p/profilin 2 axis

Fig. 12

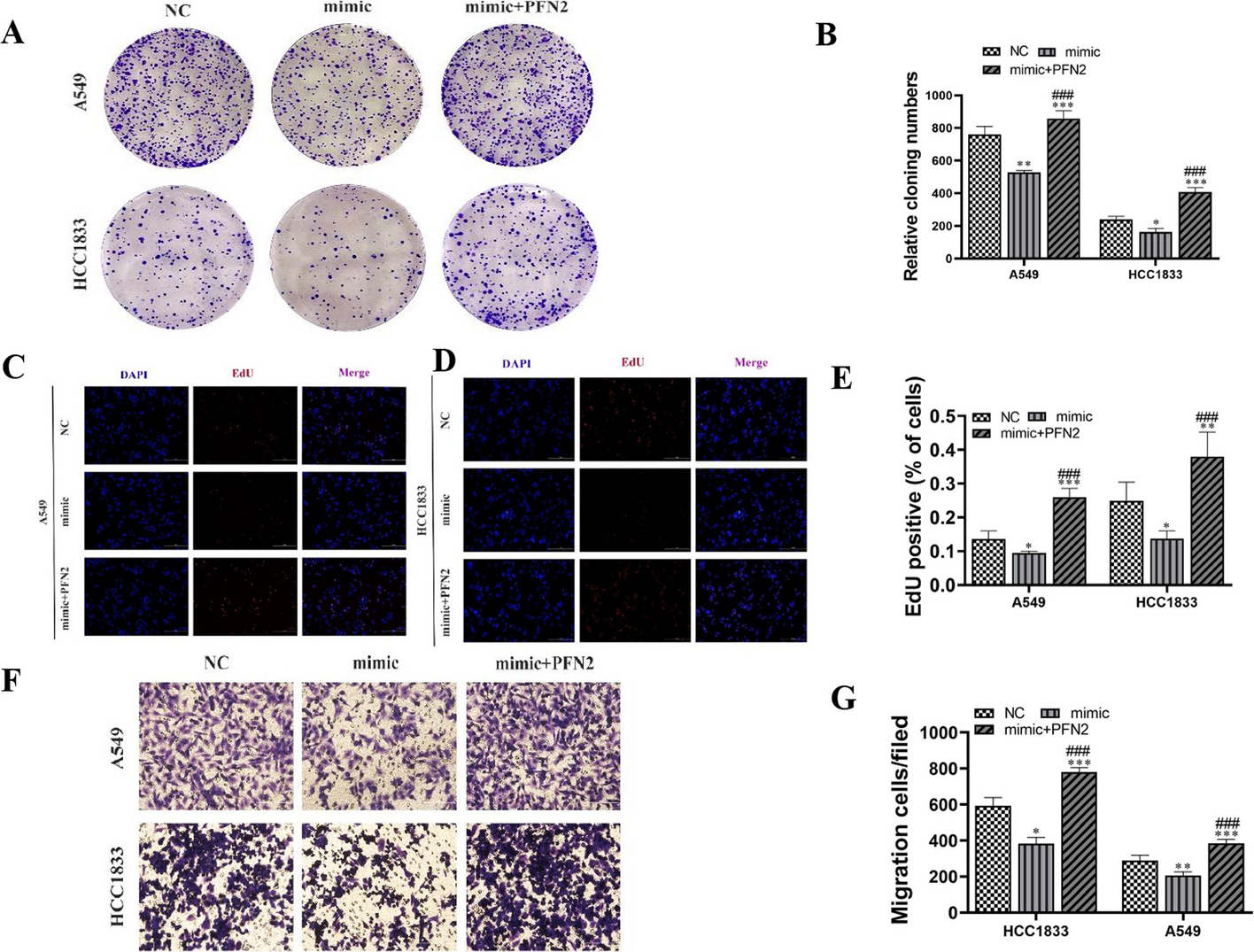

Overexpression of PFN2 reversed NSCLC cell proliferation and migration after miR-1287-5p overexpression. A, B Clone formation showing the proliferation ability in both A549 and H1833 cells. Data shown as mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001 versus NC. ###P < 0.001 versus mimic. CE EdU detection showing the proliferation ability in both A549 and H1833 cells. Data shown as mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001 versus NC. ###P < 0.001 versus mimic. F, G Transwell detection showing invasion and migration of A549 and H1833 cells. Data shown as mean ± SD. *P < 0.05, **P < 0.01, ***P < 0.001 versus NC. ###P < 0.001 versus mimic
